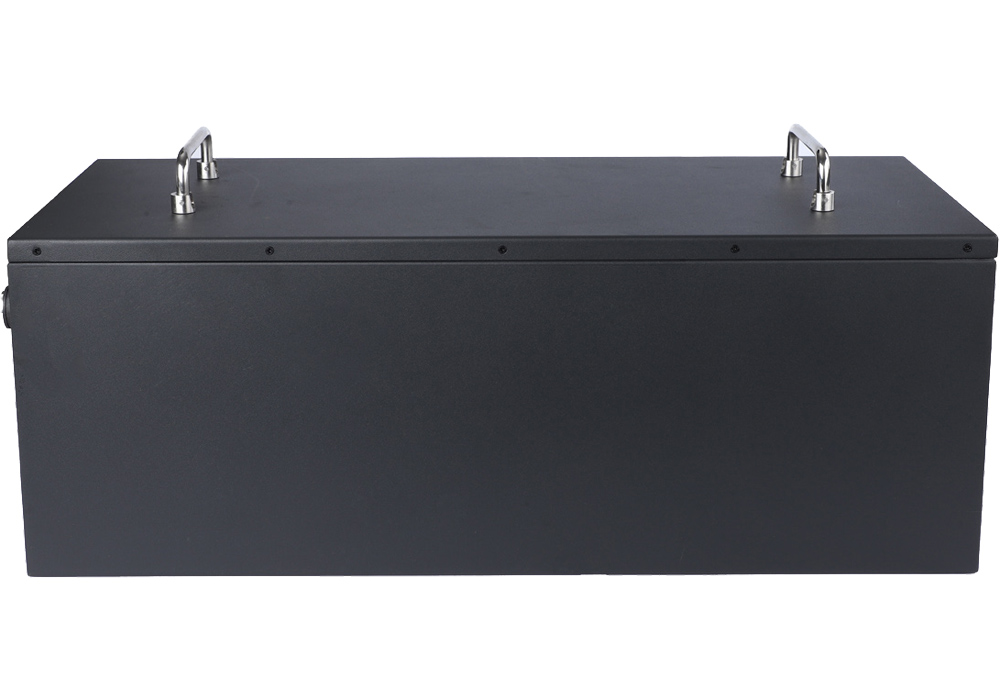

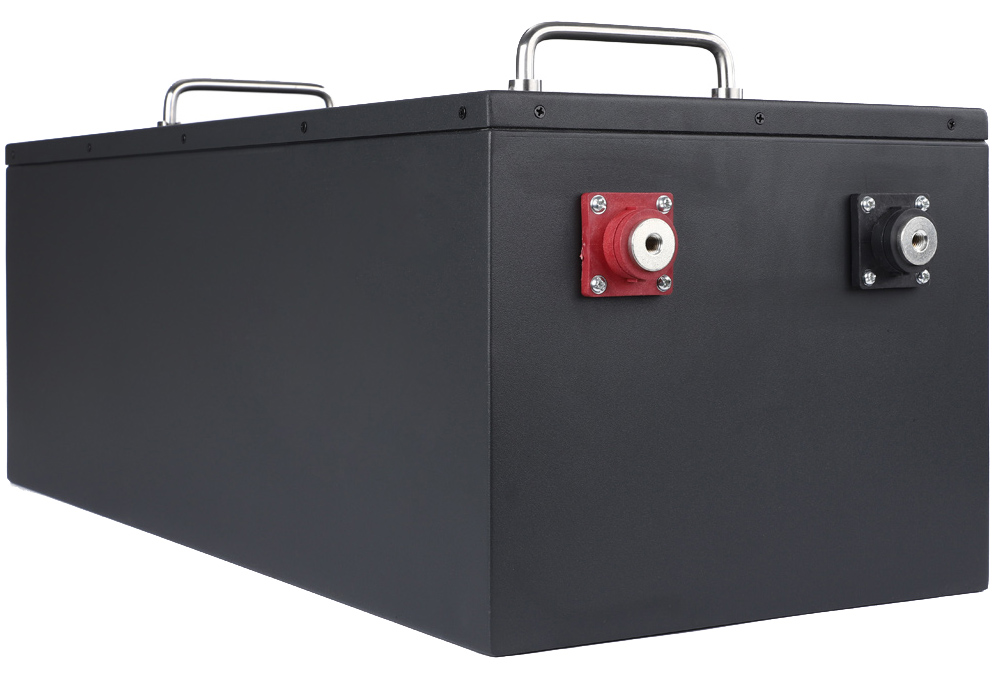

Deep Cycle 36V Battery Pack 12S1P LFP Lithium ion 36V Battery Pack Rickshaw EV RV AGV E-bike Lifepo4 36V 100Ah Batterie

2021-02-05 02:13

د محصول پیرامینټرونه
د بیټرۍ پاکټ
توضيح
څرګندونه
Model No.
AIN36100
/
بیټرۍ ډول
36V LiFEPO4 battery
/
د نومي ولټاژ
36V / 38.4Volt
customizable Voltage
Charge Cut-off (BMS protection)
45volt±0.35volt
/
Discharge Cut-off (BMS protection)
27.6volt±1.2volt
/
Standard / Nominal Capacity
105Ah
customizable
Approx. Weight
29kg
/
Pack Type
12S1P
customizable
Reserve Minutes @0.2C 25℃ /
300minutes
/
د کار ولتاژ
27.6volt~43.8volt
customizable
د پوټ رطوبت روان
300A±25A within 5second
customizable
نفوذ
≤10mΩ
/
Built-in Cell Model
Prismatic @ 100Ah/50Ah/300Ah
customizable
د تودوخې درجه چارج کړئ
32(℉)~122(℉)
/
د تودوخې درجه
-4(℉)~140(℉)
/
د ژوند ژوند
4000cycle (80%DOD)
/
Max Cont. discharge current
100A
customizable
د چارج کولو طریقه
سي سي / سي وي
customizable
Built-in BMS system
هو
/
BMS Protection Type
 Over-Charge, Over-Dishcarge, Over-Voltage, Over-Current, Short-Circuit, Auto-reset
/
BMS Balance Type
Active Auto-Balancing
/
ابعاد
53*22*17cm
customizable
Connection Type
 Modular Pack welding or laser spot welding
/
BMS
Balanced Current ( BMS )
20~30mA
/
Balanced voltage
 3.6volt
/
Over Charge Protection
3.75±0.0.3v / cell
/
Release Voltage for overcharge
3.60±0.05v
/
Rated Charge Current Protection
100A
customizable
Detection delay (over-Charge)
1000mS
/
Short circuit trigger condition
 external load short circuit
/
Detection delay (short-circuit)
200uS
/
Over-Discharge Cut-Off Voltage
2.1V±0.1V / cell
/
Over-Discharge Release Voltage
2.3V±0.1v
/
Discharge  protection current
300 (10mS)
/
Rated Discharge Current
≤100A
customizable
Release condition (short circuit & over discharge)
Disconnect Load & Charge Activation
/
Detection delay (over-discharge )
1000mS
/
Communication interface
 Bluehost / RS485 / RS232 GPS protocol port for Choice
customizable
Temperature control protection
Discharge protection: 167 (℉)±40 (℉)
/
د تودوخې کار کول
-4(℉) ~ 176(℉)
/
Over Heat Temperature Protection(Charge&Dishcarge)
167(℉)±41(℉)
/
High temperature release value(Charge&Dishcarge)
127.4(℉)
/
د LED شاخص
Display Value
Voltage / Capacity percent / Work Temperature
customizable
سند
CE, MSDS, CB-SG, UN38, UL1642
customizable
Outside Battery Box
Outside Protection Box
Stainless steel outer box
Available ABS BOX Series
IP Level
IP65
customizable
Aging
Lead time
5-15days normally
rely on the order quantity
Shipment Time
7-12days by express, 15~35days by Air, sea and rail transportation
/
Quality Assurance
تضمین
3 year / 36 months
/

Product advantages

◆ Preferred supply high-quality batteries, Exceptional voltage stability
◆ >4000 Cycles at 80% depth of discharge to ensure long cycle life
◆ Rugged mechanical design with Modular design or laser spot welding to group
◆ Suitable for high-power power products
◆ Automatic system cell Charging balancing, Maintenance-free & No hydrogen generation or gassing
◆ Direct replacement for lead-acid batteries, <70% the weight of similarly sized SLA batteries
◆ Support fast charging & 100% deep cycle
◆ High discharge rate, sustainable discharge 300A @ 3~5 second
◆ Low power consumption design, long time standby
◆ Smart LCD Auto-Display Module for Capacity Rate and Voltage / Temperature display
◆ BMS powerful intelligent protection function and automatic short circuit & activation protection function
◆ IP56 water and dust resistant Group 31 case
◆ Stainless steel outer box-compression resistant, shock resistant, durable
◆ Environmentally friendly design and quality assurance in compliance with RoHS MSDS UN38 UL CB requirements
◆ Stock / Customize available for quick delivery in the US /UK / DE / FR or worldwide

غوښتنلیکونه

1) Energy Storage: UPS, backup, power station.

2) EV: Golf trolleys, Electric scooters.

3) Solar Energy Storage Systems, Wind Energy Storage,Solar/Storage Home System, Solar Street Light.

4) د مخابراتو اساس سټیشنونه.

5) Marine Boat.

6) UPS (Uninterrupted Power Supply).

7) General Energy Storage (Such as Back-up Power, Miner's lamp, portable power supply, digital products, etc.)

اړوند LFP بیټرۍ

زموږ فابریکه



بسته بندي او لېږل

پرله پسې پوښتنې
Q1: ایا تاسو فابریکه یاست؟
A1: Yes, we are the original factory, specializing in NiMH battery and lithium battery for more than 10 years.

Q2: ایا زه کولی شم د نمونې امر ورکړم؟
A2: هو ، موږ د کیفیت ازموینې او ازموینې لپاره نمونې امر منو ، بیټرۍ د اړتیا سره سم چمتو کیدی شي.

Q3: ایا تاسو MOQ لرئ؟
A3: محدود ندی ، مګر هرڅومره چې تاسو امر وکړئ ، غوره قیمت به تاسو ترلاسه کړئ.

Q4: ستاسو د تحویلي نیټه څه ده؟
A4: معمولا 3-5 اونۍ وروسته د تادیې تایید وروسته د دقیقې امر مقدار پورې اړه لري.

پنځمه پوښتنه: تاسو د بار وړلو کوم میتود یاست؟
A5: عموما ، د اظهار یا هوا له لارې کوچنی حجم. د بحر له لارې د اندازې لوی مقدار مقدار.

Q6: تاسو کوم ډول بسته چمتو کوئ؟
A6: Standard export carton or wooden case according to battery size and weight, the package will be strong enough for long-distance transport.

موږ له تاسو سره د اوږد مهاله همکارۍ اړیکو رامینځته کولو په تمه یو ، که تاسو کومه پوښتنه لرئ ، نو مهرباني وکړئ زموږ سره اړیکه ونیسئ!

یادونه: ټول محصولات پرچون ملاتړ نه کوي ، مهرباني وکړئ د محصول قیمتونو لپاره موږ سره اړیکه ونیسئ!
