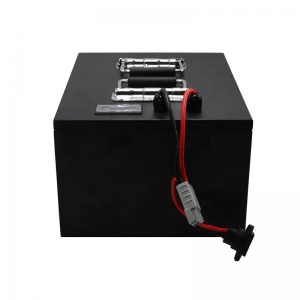

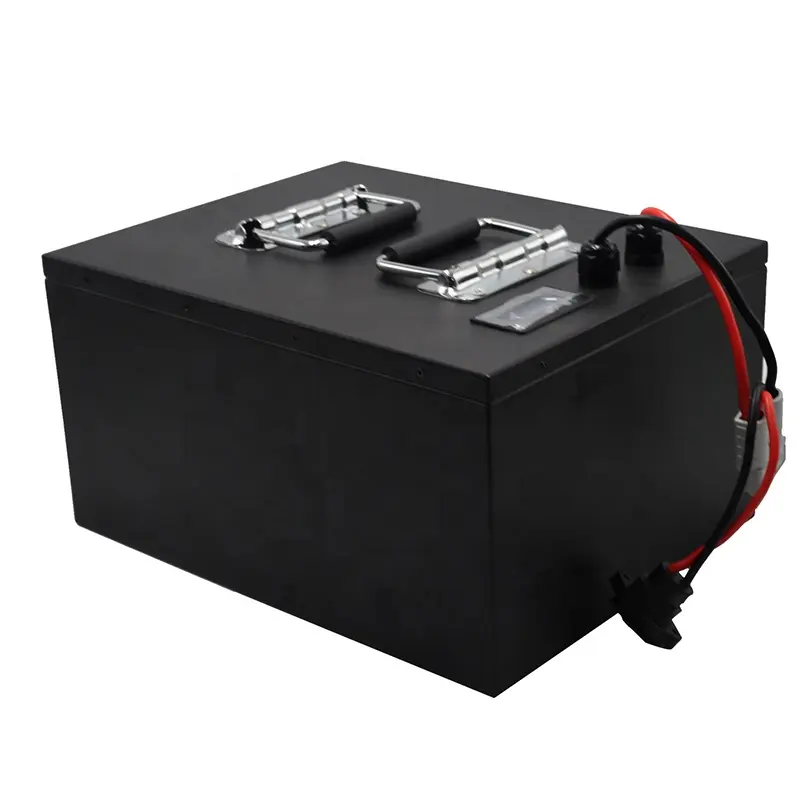

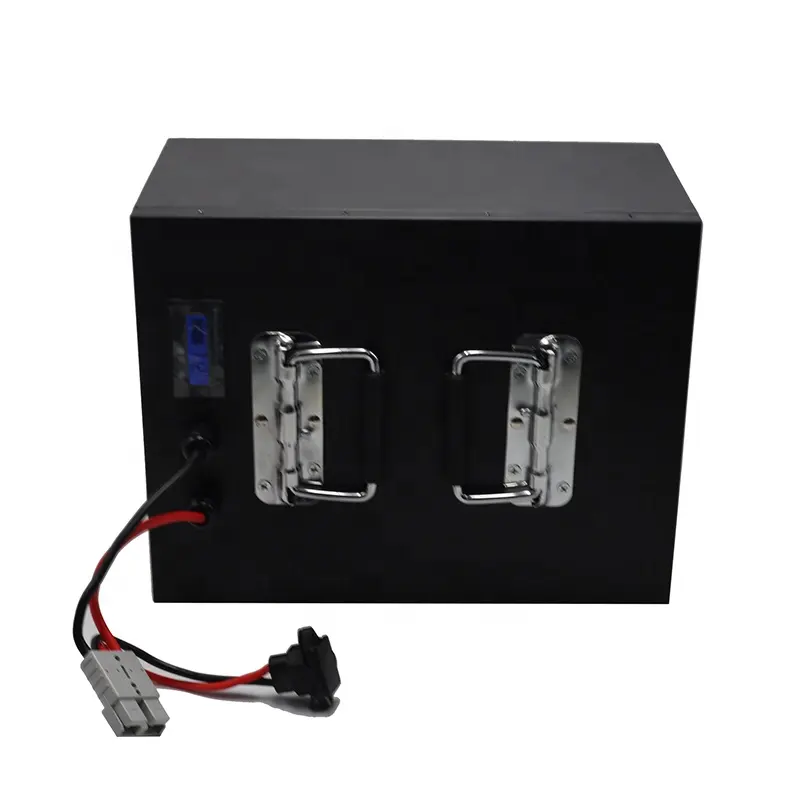

د EV موټرو لپاره دودیز شوي LiFePO4 بیټرۍ پیک 72v 60ah د بریښنایی موټرو بیټرۍ لیتیم آئن پیک

2023-06-06 02:13

توضيح

د نوم نوم	ټول په یوه کی
ماډل	AIN7260
تضمین	Years کاله
د نومي ولټاژ	76.8V
نومیالی وړتیا	[email protected]/customize
انرژي	4416Wh
داخلي مقاومت	≤50mΩ
د ژوند ژوند	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
ځان خارج	month3.5 per هره میاشت په 25 ℃ کې
د میکس چارج کولو ولټاژ	87.6 V
د چارج کولو اکر	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
اوسنی چارج	30A
د. جاري چارج	60A
روانول	30A
Max. discharge Continuous Current	60A
مایک پولس اوسنی	120A(<3S）
د کټ آف ولټاج خارجول	60V
د تودوخې درجه چارج کړئ	0 ℃ تر 45 ℃ (32 ℉ تر 113 ℉) @ 60 ± 25 Re نسبي رطوبت
د تودوخې درجه	-20 ℃ تر 60 ℃ (-4 ℉ تر 140 ℉ پورې) @ 60 ± 25٪ نسبي رطوبت
د تودوخې درجه	0 ℃ تر 45 ℃ (32 ℉ تر 113 ℉) @ 60 ± 25 Re نسبي رطوبت
د اوبو دوړو مقاومت	IP55
د حجره او بmatه	LFP  60AH 24S1P/customize
سانسور کول	Metal Case
ابعاد (L * W * H * TH)	دودول
وزن	50kg
ټرمینل	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
د چارج کولو طریقه	سي سي / سي وي
Terminal Type	M6 or Anderson or another bolt screw/customize
سند	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

یادونه

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

کاریال

زموږ فابریکه

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

بسته بندي او لېږل

بسته بندي

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

لېږدول

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



پرله پسې پوښتنې

پوښتنه: زه څنګه تادیه وکړم؟ تاسو د تادیې کوم ډول طریقې منئ؟
A: T/T, PayPal, Western Union.

پوښتنه: ایا د نمونې امر د منلو وړ دی؟
A: هو ، د ډیری بیټریو لپاره ، د کیفیت ازمونې لپاره نمونې امر مناسب او د منلو وړ دی.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. د رامینځته شوي زیان لپاره ، لکه د بیټرۍ بلج/ویلډډ ، د ساتنې پرته د بیټرۍ کڅوړه BMS د چارج کیدو له امله رامینځته کیږي.
