توضيح
ماډل نمبر | AIN HP5.1L-A1 | AIN HP7.6L-A1 | AIN HP10.2L-A1 |
Nominal Parameters | |||
ولټيج | 48/51.2V | 48/51.2V | 48/51.2V |
وړتیا | 100Ah | 150Ah | 200Ah |
انرژي | 5.12kwh | 7.68kwh | 10.24kwh |

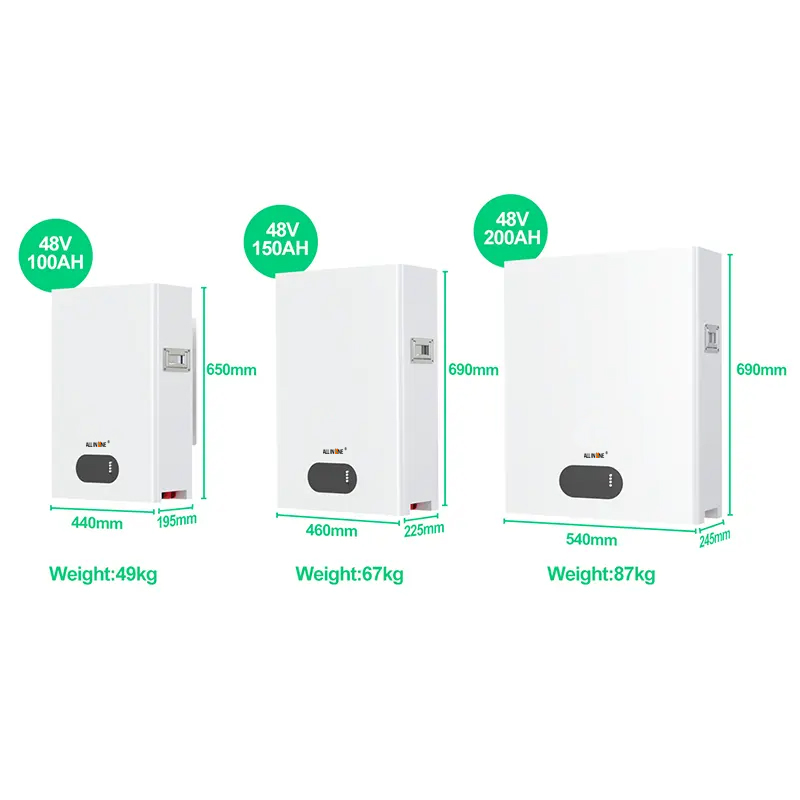

Dimensions (L xWxH) | 440x695x195mm | 460x690x225mm | 540x690x245mm |
وزن | 49kg | 67kg | 87kg |
بنسټیز پیرامیټرې | |||
Life Times (25C) | 20 Years | 20 Years | 20 Years |
Life Cycles (80% DOD, 25°C) | 5000 Cycles | 5000 Cycles | 5000 Cycles |
Storage Time /Temperature | 5 months @25°C; 3 months @35°C; 1 month @45°C | 5 months @25°C; 3 months @35°C; 1 month @45°C | 5 months @25°C; 3 months @35°C; 1 month @45°C |
د تودوخې درجه | ""-20°C to 60°C @60+/- 25% Relative Humidity | ""-20°C to 60°C @60+/- 25% Relative Humidity | ""-20°C to 60°C @60+/- 25% Relative Humidity |
د تودوخې درجه | د 0°C څخه تر 45°C @60+/-25% نسبي رطوبت | د 0°C څخه تر 45°C @60+/-25% نسبي رطوبت | د 0°C څخه تر 45°C @60+/-25% نسبي رطوبت |
د لیتیم بیټرۍ معیاري | 1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3 | ||
Enclosure Protection Rating | IP31Rating | ||
Electrical Parameter | |||
Operation Voltage | 40-57.6Vdc | 40-57.6Vdc | 40-57.6Vdc |
Max charging Voltage | 58Vdc | 58Vdc | 58Vdc |
Max charging and Dis charging Current | 100A | 150A | 200A |
اعظمي ځواک | 5120W | 7680W | 10240W |
زموږ فابریکه
ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.
پرله پسې پوښتنې
پوښتنه: ایا تاسو د سوداګرۍ شرکت یا تولید کونکی یاست؟
A: We are ALL IN ONE original factory.
پوښتنه: ایا زه کولی شم د آزموینې لپاره نمونې ترلاسه کړم؟ او د نمونې امر لپاره د رهبري وخت څه دی؟
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
پوښتنه: ایا تاسو د پلور وروسته خدمت چمتو کوئ؟
A: هو ، تضمین 12 میاشتې دی ، که پدې دوره کې زموږ له پلوه کومه کیفیت ستونزه وي ، موږ کولی شو نوی د ځای په ځای لیږو.
پوښتنه: ایا تاسو OEM / ODM منئ؟
A: هو ، دا شتون لري.
پوښتنه: ایا تاسو د بیټرۍ اصلي ظرفیت لرئ؟
A: زموږ د بیټرۍ ټولې حجرې د A درجې سره ، 100 new نوي او اصلي ظرفیت سره.
پوښتنه: تاسو کوم ډول سندونه لرئ؟
A: موږ سی ای ، ROHS ، FCC ، IEC62133 ، MSDS ، UN38.3 چمتو کولی شو که ستاسو د امر مقدار لوی وي.
پوښتنه: ایا تاسو MOQ لرئ؟
A: محدود ندی. کوچني امر هم ښه راغلاست. ډیر مقدار غوره قیمت لري ، موږ به ستاسو لپاره غوره نرخ وګورو.
پوښتنه: ستاسو د تادیې موده څه ده؟
A: موږ T / T ، تادیه ، د علی بابا د تادیې لارې اختیار کوو او داسې نور.
Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
